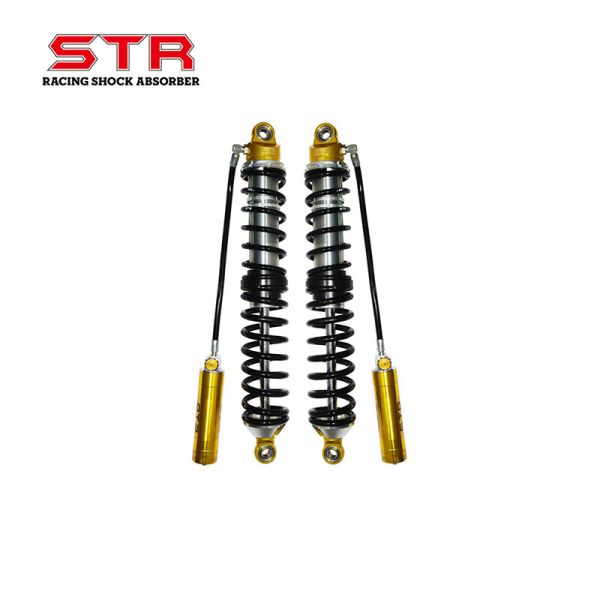

SG8000 Series Adjustable Coilover Shock with 100-350LBS Spring Rate Aluminum Pillowball Top Mounts and Inverted Piston Design

Brand Name : STR

Model Number : SG8000-2436

Certification : ISO9001 2015

Place of Origin : China

MOQ : 8PCS

Price : USD285-350/PC

Payment Terms : T/T

Supply Ability : 5000PCS/Month

Delivery Time : Depend on the Quantity

Packaging Details : Paper Carton

Model : SG8000 Series

Spring Rate : 100/150/200/250/300/350lbs

Top Mounts : Aluminum Pillowball

Adjustable Camber Plate : Yes

Piston Design : Inverted

Warranty : 1 Year Limited

Adjustable Damping : Yes

Travel Length : 8-16''

Spring Material : High Tensile Steel

Body Material : Aluminum

Adjustable Height : Yes

Damper Type : Monotube

type : STR Shocks

application : off road shocks

feature : adjustable shock absorbers

other name : vehicle shock absorber

product type : shock absorbers

Contact Now

Double Coilover Adjustable Racing Suspension

High-performance adjustable racing suspension with compression and rebound damping, available in 8-12" travel lengths and 100-350LBS coil springs.

Product Specifications

Attribute	Value
Model	SG8000 Series
Spring Rate	100/150/200/250/300/350lbs
Top Mounts	Aluminum Pillowball
Adjustable Camber Plate	Yes
Piston Design	Inverted
Warranty	1 Year Limited
Adjustable Damping	Yes
Travel Length	8-16"
Spring Material	High Tensile Steel
Body Material	Aluminum
Adjustable Height	Yes
Damper Type	Monotube

Key Features

Electric zinc plated steel shock body with crystal clear Cerakote for durability and corrosion resistance
Red/Black/Blue/Green/Golden anodized billet aluminum top and bottom caps
Hard-chrome plated steel shock shafts for superior corrosion resistance
Shock eye mounts feature machined rod ends with high strength spherical bearings
Shaeffer's high grade temperature stable synthetic hydraulic fluid
Fully rebuildable design for extended service life

Technical Parameters

Parameter	Specification
Dampening Adjustment 1	24 steps compression
Dampening Adjustment 2	30 steps rebound
Top Strut	CNC 6061-T6 Aluminum
Oil Hose Material	14mm Teflon
Oil Hose Length	600mm
Spring Style	Coil spring
Spring Rate	100/150/200/250/300/350LBS
Oil Hose Joint	Swivel Banjo Fitting
Gas Reservoir Length	200MM
Shock Body	Steel or Aluminum alloy
Shock Body OD	66mm
Piston Rod OD	22mm
Bushes	Silent block steel rubber bushes
MOQ	5 sets
Color Options	Red/Golden/Black/Green/Blue
Valve Core	Yes

Installation Gallery
